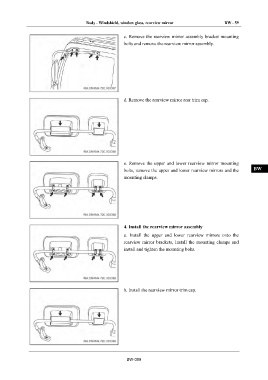

Body - Windshield, window glass, rearview mirror BW - 59
c. Remove the rearview mirror assembly bracket mounting IN
bolts and remove the rearview mirror assembly.
DI
EG
TR
d. Remove the rearview mirror rear trim cap.
AX
FR
ST
BR
e. Remove the upper and lower rearview mirror mounting
bolts, remove the upper and lower rearview mirrors and the BW
mounting clamps.
EL
4. Install the rearview mirror assembly
a. Install the upper and lower rearview mirrors onto the
rearview mirror brackets, install the mounting clamps and
install and tighten the mounting bolts.
b. Install the rearview mirror trim cap.
BW-059
