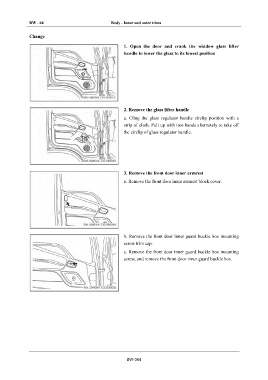

BW - 64 Body - Inner and outer trims

Change
1. Open the door and crank the window glass lifter
handle to lower the glass to its lowest position

2. Remove the glass lifter handle
a. Cling the glass regulator handle circlip position with a
strip of cloth. Pull up with two hands alternately to take off
the circlip of glass regulator handle.

3. Remove the front door inner armrest
a. Remove the front door inner armrest block cover.

b. Remove the front door inner guard buckle box mounting
screw trim cap.
c. Remove the front door inner guard buckle box mounting
screw, and remove the front door inner guard buckle box.

BW-064
