Body - Seat BW - 165

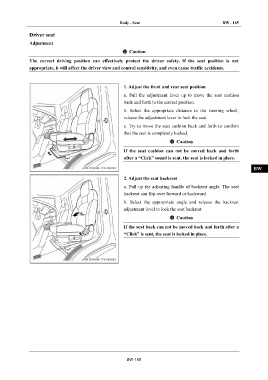

Driver seat IN

Adjustment
Caution DI
The correct driving position can effectively protect the driver safety. If the seat position is not
appropriate, it will affect the driver view and control sensitivity, and even cause traffic accidents. EG

TR
1. Adjust the front and rear seat position
a. Pull the adjustment lever up to move the seat cushion
back and forth to the correct position. AX
b. Select the appropriate distance to the steering wheel,
release the adjustment lever to lock the seat. FR
c. Try to move the seat cushion back and forth to confirm
that the seat is completely locked.
ST
Caution
If the seat cushion can not be moved back and forth BR
after a “Click” sound is sent, the seat is locked in place.

BW
2. Adjust the seat backrest
a. Pull up the adjusting handle of backrest angle. The seat EL
backrest can flip-over forward or backward.

b. Select the appropriate angle and release the backrest
adjustment level to lock the seat backrest.

Caution
If the seat back can not be moved back and forth after a
“Click” is sent, the seat is locked in place.

BW-165
