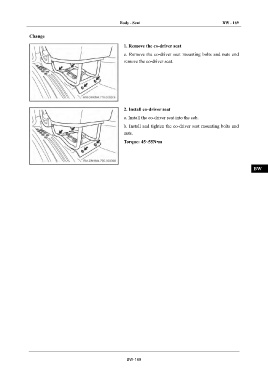

Page 1407 - Foton Workshop Manual - Auman EST-M
P. 1407
Body - Seat BW - 169
Change IN
1. Remove the co-driver seat
DI
a. Remove the co-driver seat mounting bolts and nuts and
remove the co-driver seat.
EG
TR
AX
2. Install co-driver seat
a. Install the co-driver seat into the cab. FR
b. Install and tighten the co-driver seat mounting bolts and
nuts.
ST
Torque: 45~55N•m
BR
BW
EL
BW-169
