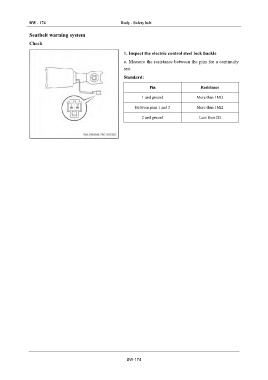

Page 1412 - Foton Workshop Manual - Auman EST-M
P. 1412
BW - 174 Body - Safety belt
Seatbelt warning system
Check
1. Inspect the electric control steel lock buckle
a. Measure the resistance between the pins for a continuity
test.
Standard:
Pin Resistance
1 and ground More than 1MΩ
Between pins 1 and 2 More than 1MΩ
2 and ground Less than 2Ω
BW-174
