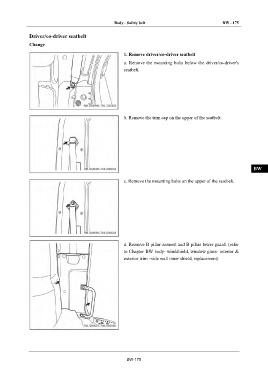

Page 1413 - Foton Workshop Manual - Auman EST-M

Body - Safety belt BW - 175

Driver/co-driver seatbelt IN
Change
DI
1. Remove driver/co-driver seatbelt

a. Remove the mounting bolts below the driver/co-driver's
seatbelt. EG

TR

AX

b. Remove the trim cap on the upper of the seatbelt. FR

ST

BR

BW

c. Remove the mounting bolts on the upper of the seatbelt.
EL

d. Remove B pillar armrest and B pillar lower guard. (refer
to Chapter BW body- windshield, window glass- interior &
exterior trim –side wall inner shield, replacement)

BW-175
