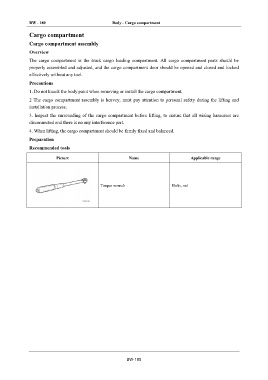

BW - 180 Body - Cargo compartment

Cargo compartment

Cargo compartment assembly
Overview
The cargo compartment is the truck cargo loading compartment. All cargo compartment parts should be
properly assembled and adjusted, and the cargo compartment door should be opened and closed and locked
effectively without any tool.
Precautions

1. Do not knock the body paint when removing or install the cargo compartment.
2 The cargo compartment assembly is heavey; must pay attention to personal safety during the lifting and
installation process.

3. Inspect the surrounding of the cargo compartment before lifting, to eusure that all wiring harnesses are
disconnected and there is no any interference part.

4. When lifting, the cargo compartment should be firmly fixed and balanced.
Preparation
Recommended tools

Picture Name Applicable range

Torque wrench Bolts, nut

BW-180
