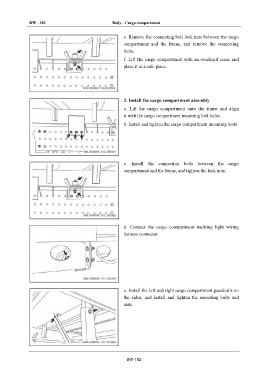

BW - 182 Body - Cargo compartment

e. Remove the connecting bolt lock nuts between the cargo
compartment and the frame, and remove the connecting
bolts.
f. Lift the cargo compartment with an overhead crane and
place it in a safe place.

2. Install the cargo compartment assembly

a. Lift the cargo compartment onto the frame and align
it with the cargo compartment mounting bolt holes.
b. Install and tighten the cargo compartment mounting bolts.

c. Install the connection bolts between the cargo
compartment and the frame, and tighten the lock nuts.

d. Connect the cargo compartment marking light wiring
harness connector.

e. Install the left and right cargo compartment guardrails on
the sides, and install and tighten the mounting bolts and
nuts.
