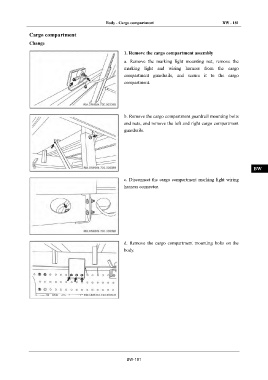

Body - Cargo compartment BW - 181

Cargo compartment IN

Change
1. Remove the cargo compartment assembly DI
a. Remove the marking light mounting nut, remove the
marking light and wiring harness from the cargo EG
compartment guardrails, and secure it to the cargo

compartment.
TR

AX

b. Remove the cargo compartment guardrail mounting bolts
FR
and nuts, and remove the left and right cargo compartment

guardrails.
ST

BR

BW

c. Disconnect the cargo compartment marking light wiring
harness connector. EL

d. Remove the cargo compartment mounting bolts on the
body.

BW-181
