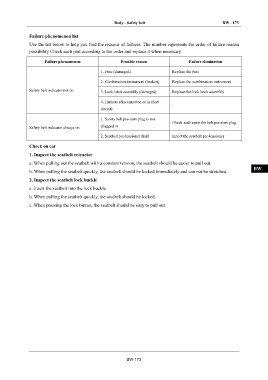

Page 1411 - Foton Workshop Manual - Auman EST-M

Body - Safety belt BW - 173

Failure phenomenon list IN
Use the list below to help you find the reasons of failures. The number represents the order of failure reason
possibility Check each part according to the order and replace it when necessary DI

Failure phenomenon Possible reason Failure elimination
EG
1. Fuse (damaged) Replace the fuse

2. Combination instrument (broken) Replace the combination instrument
TR
Safety belt indicator not on 3. Lock latch assembly (damaged) Replace the lock latch assembly

4. Harness (disconnected or in short AX
-
circuit)
1. Safety belt pre-alert plug is not FR
Check and repair the belt pre-alert plug
Safety belt indicator always on plugged in
2. Seatbelt pre-tensioner fault Inpect the seatbelt pre-tensioner ST

Check on car
BR
1. Inspect the seatbelt retractor

a. When pulling out the seatbelt with a constant tension, the seatbelt should be easier to pull out.
BW
b. When pulling the seatbelt quickly, the seatbelt should be locked immediately and can not be stretched.

2. Inspect the seatbelt lock buckle
EL
a. Insert the seatbelt into the lock buckle.

b. When pulling the seatbelt quickly, the seatbelt should be locked.

c. When pressing the lock button, the seatbelt should be easy to pull out.

BW-173
