EL - 304 Electrical system –circuit

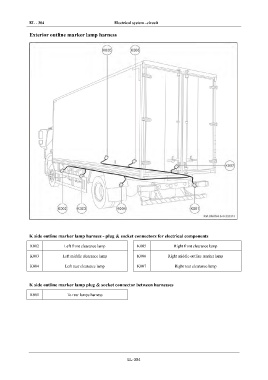

IN Exterior outline marker lamp harness
DI
EG
TR
AX
FR
ST
BR
BW
EL
K side outline marker lamp harness - plug & socket connectors for electrical components
K002 Left front clearance lamp K005 Right front clearance lamp
K003 Left middle clearance lamp K006 Right middle outline marker lamp
K004 Left rear clearance lamp K007 Right rear clearance lamp
K side outline marker lamp plug & socket connector between harnesses
K001 To rear lamps harness
EL-304
