EL - 300 Electrical system –circuit

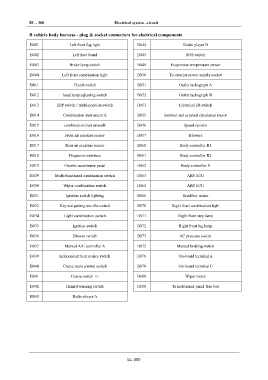

IN B vehicle body harness - plug & socket connectors for electrical components
B001 Left front fog light B044 Radio player B
DI
B002 Left foot board B045 SOS switch
B003 Brake lamp switch B049 Evaporator temperature sensor
EG
B004 Left front combination light B050 To exterior power supply socket
TR B011 Clutch switch B051 Outlet tachograph A
B012 head lamp adjusting switch B052 Outlet tachograph B
AX
B013 EBP switch / multi-position switch B053 Electrical lift switch
B014 Combination instrument A B055 Internal and external circulation motor
FR
B015 combination instrumentB B056 Speed resistor
ST B016 Front air pressure sensor B057 Blowers
B017 Rear air pressure sensor B060 Body controller B1
BR
B018 Diagnosis interface B061 Body controller B2
B019 Electric accelerator pedal B062 Body controller A
BW
B029 Multi-functional combination switch B063 ABS ECU
EL B030 Wiper combination switch B064 ABS ECU
B031 Ignition switch lighting B066 Scrubber motor
B032 Key not getting into the switch B070 Right front combination light
B034 Light combination switch B071 Right front step lamp
B035 Ignition switch B072 Right front fog lamp
B036 Blower switch B073 AC pressure switch
B037 Manual A/C controller A B075 Manual braking switch
B039 Independent heat source switch B076 On-board terminal A
B040 Cruise main control switch B078 On-board terminal C
B041 Cruise switch +/- B080 Wiper motor
B042 Hazard warning switch B100 To instrument panel fuse box
B043 Radio player A
EL-300
