Electrical system –circuit EL - 295

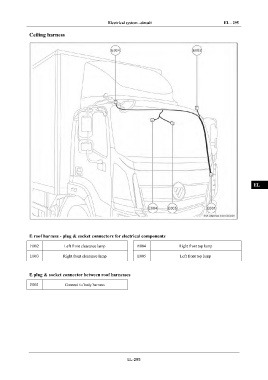

Ceiling harness IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
E roof harness - plug & socket connectors for electrical components
E002 Left front clearance lamp E004 Right front top lamp
E003 Right front clearance lamp E005 Left front top lamp
E plug & socket connector between roof harnesses
E001 Connect to body harness
EL-295
