Electrical system –circuit EL - 291

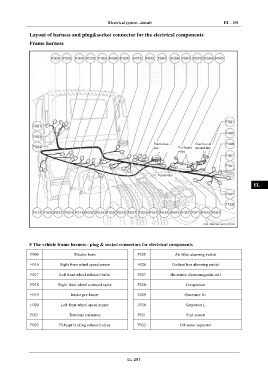

Layout of harness and plug&socket connector for the electrical components IN
Frame harness
DI
EG
TR
AX
FR
ST
Frame fuse Fuse box of
box Pre-heater second line
relay BR
BW
Fuseholder
EL
F The vehicle frame harness - plug & socket connectors for electrical components
F009 Electric horn F025 Air filter alarming switch
F016 Right front wheel speed sensor F026 Coolant leve alarming switch
F017 Left front wheel solenoid valve F027 the starter electromagnetic coil
F018 Right front wheel solenoid valve F028 Compressor
F019 Intake pre-heater F029 Generator B+
F020 Left front wheel speed sensor F030 Generator L
F021 Terminal resistance F031 Fuel sensor
F023 Exhaust braking solenoid valve F032 Oil-water separator
EL-291
