Electrical system –circuit EL - 287

IN

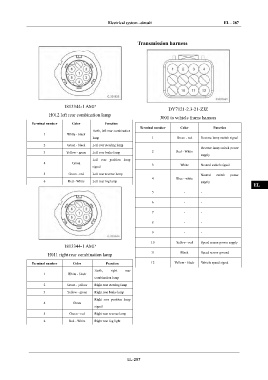

Transmission harness

DI

EG

TR

AX
1813344-1 AMP
DY7121-2.3-21-ZJZ
H012 left rear combination lamp
J001 to vehicle frame harness FR
Terminal number Color Function
Terminal number Color Function
Earth, left rear combination
1 White - black ST
lamp 1 Green - red Reverse lamp switch signal

2 Green - black Left rear steering lamp
Reverse lamp switch power
3 Yellow - green Left rear brake lamp 2 Red - White BR
supply
Left rear position lamp
4 Green 3 White Neutral switch signal
signal
BW
5 Green - red Left rear reverse lamp Neutral switch power
4 Blue - white
6 Red - White Left rear fog lamp supply
EL
5 - -

6 - -

7 - -

8 - -

9 - -

10 Yellow - red Speed sensor power supply
1813344-1 AMP

11 Black Speed sensor ground
H011 right rear combination lamp

Terminal number Color Function 12 Yellow - black Vehicle speed signal

Earth, right rear
1 White - black
combination lamp

2 Green - yellow Right rear steering lamp

3 Yellow - green Right rear brake lamp
Right rear position lamp
4 Green
signal

5 Green - red Right rear reverse lamp

6 Red - White Right rear fog light
