Page 1710 - Foton Workshop Manual - Auman EST-M
P. 1710

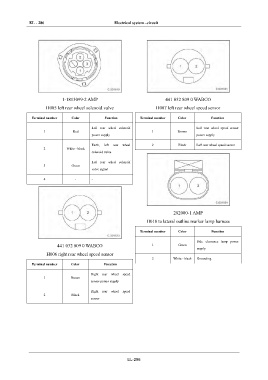

EL - 286 Electrical system –circuit
IN
DI
EG
TR
1-1813099-2 AMP 441 032 809 0 WABCO
AX
H005 left rear wheel solenoid valve H007 left rear wheel speed sensor
FR Terminal number Color Function Terminal number Color Function
Left rear wheel solenoid Left rear wheel speed sensor
1 Red 1 Brown
ST power supply power supply
Earth, left rear wheel 2 Black Left rear wheel speed sensor
2 White - black
BR solenoid valve
Left rear wheel solenoid
3 Green
BW valve signal
4 - -
EL
282080-1 AMP
H010 to lateral outline marker lamp harness
Terminal number Color Function
Side clearance lamp power
441 032 809 0 WABCO 1 Green
supply
H006 right rear wheel speed sensor
2 White - black Grounding
Terminal number Color Function
Right rear wheel speed
1 Brown
sensor power supply
Right rear wheel speed
2 Black
sensor
EL-286
