Page 1706 - Foton Workshop Manual - Auman EST-M
P. 1706

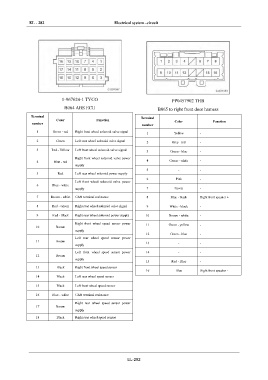

EL - 282 Electrical system –circuit
IN
DI
EG
TR
1-967624-1 TYCO
AX PP0457902 THB
B064 ABS ECU
B065 to right front door harness
Terminal
FR Color Function Terminal
number number Color Function
1 Green - red Right front wheel solenoid valve signal 1 Yellow -
ST
2 Green Left rear wheel solenoid valve signal 2 Grey –red -
3 Red - Yellow Left front wheel solenoid valve signal
BR 3 Green - blue -
Right front wheel solenoid valve power
4 Green - white -
4 Blue - red
supply
BW 5 - -
5 Red Left rear wheel solenoid power supply
6 Pink -
Left front wheel solenoid valve power
EL 6 Blue - white
supply 7 Green -
7 Brown - white CAN terminal resistance 8 Blue - black Right front speaker +
8 Red - Green Right rear wheel solenoid valve signal 9 White - black -
9 Red - Black Right rear wheel solenoid power supply 10 Brown - white -
Right front wheel speed sensor power 11 Green - yellow -
10 Brown
supply
12 Green - blue -
Left rear wheel speed sensor power
11 Brown
supply 13 - -
Left front wheel speed sensor power 14 - -
12 Brown
supply 15 Red - Blue -
13 Black Right front wheel speed sensor
16 Blue Right front speaker -
14 Black Left rear wheel speed sensor
15 Black Left front wheel speed sensor
16 Blue - white CAN terminal resistance
Right rear wheel speed sensor power
17 Brown
supply
18 Black Right rear wheel speed sensor
EL-282
