P. 1707

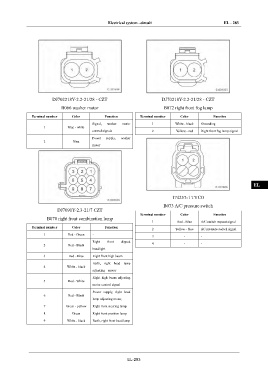

Electrical system –circuit EL - 283
IN
DI
EG
TR
DJ702218Y-2.2-21/28 - CZT DJ70218Y-2.2-21/28 - CZT
AX
B066 washer motor B072 right front fog lamp
Terminal number Color Function Terminal number Color Function
FR
Signal, washer motor 1 White - black Grounding
1 Blue - white
control signals 2 Yellow - red Right front fog lamp signal
ST
Power supply, washer
2 Blue
motor
BR
BW
EL
174257-1 TYCO
B073 A/C pressure switch
DJ7091Y-2.3-21/7 CZT
Terminal number Color Function
B070 right front combination lamp
1 Red - Blue A/C switch request signal
Terminal number Color Function
2 Yellow - blue AC pressure switch signal
1 Red - Green -
3 - -
Right front dipped
2 Red - Black 4 - -
headlight
3 Red - Blue Right front high beam
Earth, right head lamp
4 White - black
adjusting motor
Right high beam adjusting
5 Red - White
motor control signal
Power supply, right head
6 Red - Black
lamp adjusting motor,
7 Green - yellow Right front steering lamp
8 Green Right front position lamp
9 White - black Earth, right front head lamp
EL-283
