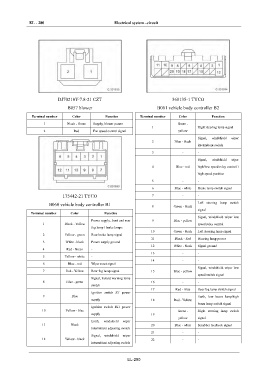

P. 1704
EL - 280 Electrical system –circuit
IN
DI
EG
TR
DJ70210Y-7.8-21 CZT 368135-1 TYCO
AX
B057 blower B061 vehicle body controller B2
Terminal number Color Function Terminal number Color Function
FR
1 Black - Green Supply, blower power Green -
1 Right steering lamp signal
2 Red Fan speed control signal yellow
ST
Signal, windshield wiper
2 Blue - black
intermittent switch
BR 3 - -
Signal, windshield wiper
4 Blue - red high/low speed relay control \
BW
high speed position
5 - -
EL
6 Blue - white Brake lamp switch signal
7 - -
175442-21 TYCO
Left steering lamp switch
B060 vehicle body controller B1 8 Green - black
signal
Terminal number Color Function
Signal, windshield wiper low
Power supply, front and rear 9 Blue - yellow
1 Black - Yellow speed relay control
fog lamp \ brake lamps
10 Green - black Left steering lamp signal
2 Yellow - green Rear brake lamp signal
11 Black - Red Steering lamp power
3 White - black Power supply ground
12 White - black Signal ground
4 Red - Green -
13 - -
5 Yellow - white -
14 - -
6 Blue - red Wiper reset signal
Signal, windshield wiper low
7 Red - Yellow Rear fog lamp signal 15 Blue - yellow
speed switch signal
Signal, hazard warning lamp
8 Blue - green 16 - -
switch
17 Red - Blue Rear fog lamp switch signal
Ignition switch ST power
9 Blue Earth, low beam lamp/high
supply 18 Red - Yellow
beam lamp switch signal
Ignition switch IG1 power
10 Yellow - blue Green - Right steering lamp switch
supply 19
yellow signal
Earth, windshield wiper
11 Black 20 Blue - white Scrubber feedback signal
intermittent adjusting switch
21 - -
Signal, windshield wiper
12 Yellow - black intermittent adjusting switch 22 - -
EL-280
