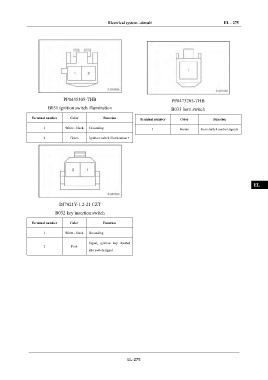

Electrical system –circuit EL - 275
IN
DI
EG
TR
PP0435305-THB PP0473205-THB AX
B031 ignition switch illumination B033 horn switch
Terminal number Color Function FR
Terminal number Color Function
1 White - black Grounding
1 Brown Horn switch control signals
ST
2 Green Ignition switch illumination +
BR
BW
EL
DJ7021Y-1.2-21 CZT
B032 key insertion switch
Terminal number Color Function
1 White - black Grounding
Signal, ignition key inserted
2 Pink
into switch signal
EL-275
