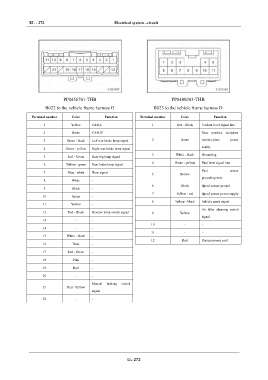

EL - 272 Electrical system –circuit
IN
DI
EG
TR
PP0456701-THB PP0480203-THB
AX
B022 to the vehicle frame harness G B023 to the vehicle frame harness D
Terminal number Color Function Terminal number Color Function
FR
1 Yellow CAN-L 1 Red - Black Coolant level signal line
2 Green CAN-H Rear position lamp/rear
ST
3 Green - black Left rear brake lamp signal 2 Green number-plate power
supply
4 Green - yellow Right rear brake lamp signal
BR
3 White - black Grounding
5 Red - Green Rear fog lamp signal
4 Green - yellow Fuel level signal line
6 Yellow - green Rear brake lamp signal
BW Fuel sensor
7 Blue - white Horn signal 5 Brown
grounding wire
8 White -
EL 6 Black Speed sensor ground
9 Black -
7 Yellow - red Speed sensor power supply
10 Green -
8 Yellow - black Vehicle speed signal
11 Yellow -
Air filter alarming switch
12 Red - Black Reverse lamp switch signal 9 Yellow
signal
13 - -
10 - -
14 - -
11 - -
15 White - black -
12 Red Battery power cord
16 Blue -
17 Red - Green -
18 Pink -
19 Red -
20 - -
Manual braking switch
21 Red - Yellow
signal
22 - -
EL-272
