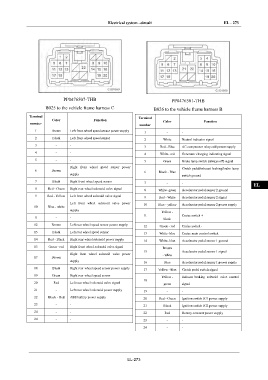

Page 1697 - Foton Workshop Manual - Auman EST-M

Electrical system –circuit EL - 273

IN

DI

EG

TR

PP0476507-THB PP0476501-THB AX
B025 to the vehicle frame harness C B026 to the vehicle frame harness B

Terminal Terminal
Color Function FR
number Color Function
number

1 Brown Left front wheel speed sensor power supply
1 - -
ST
2 Black Left front wheel speed sensor
2 White Neutral indicator signal

3 - -
3 Red - Blue AC compressor relay coil power supply
4 - - BR
4 White- red Generator charging indicating signal
5 - -
5 Green Brake lamp switch (always off) signal
Right front wheel speed sensor power Clutch pedal/exhaust braking/brake lamp BW
6 Brown 6 Black - Blue
supply
switch ground
7 Black Right front wheel speed sensor
7 - -
EL
8 Red - Green Right rear wheel solenoid valve signal
8 White- green Accelerator pedal sensor 2 ground

9 Red - Yellow Left front wheel solenoid valve signal
9 Red - White Accelerator pedal sensor 2 signal

Left front wheel solenoid valve power
10 Blue - white 10 Blue - yellow Accelerator pedal sensor 2 power supply
supply
Yellow -
11 Cruise switch +
11 - -
black
12 Brown Left rear wheel speed sensor power supply
12 Green - red Cruise switch -
13 Black Left rear wheel speed sensor 13 White- blue Cruise main control switch

14 Red - Black Right rear wheel solenoid power supply
14 White- blue Accelerator pedal sensor 1 ground

15 Green - red Right front wheel solenoid valve signal
Brown
15 Accelerator pedal sensor 1 signal
Right front wheel solenoid valve power - white
17 Brown
supply
16 Blue Accelerator pedal sensor 1 power supply
18 Black Right rear wheel speed sensor power supply
17 Yellow - blue Clutch pedal switch signal
19 Green Right rear wheel speed sensor
Yellow - Exhaust braking solenoid valve control
18
20 Red Left rear wheel solenoid valve signal green signal
21 - Left rear wheel solenoid power supply 19 - -

22 Black - Red ABS battery power supply 20 Red - Green Ignition switch IG1 power supply

23 - - 21 Black Ignition switch IG2 power supply

24 - - 22 Red Battery constant power supply
24 - -
23 - -
24 - -

EL-273
