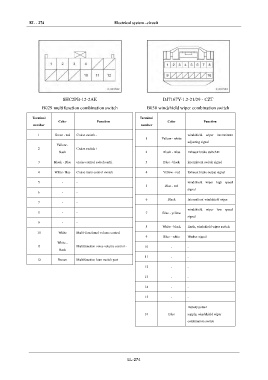

EL - 274 Electrical system –circuit
IN
DI
EG
TR
SHC2PB-12-2AK DJ7167Y-1.2-21/29 - CZT
AX
B029 multifunction combination switch B030 windshield wiper combination switch
FR Terminal Terminal
Color Function Color Function
number number
ST 1 Green - red Cruise switch - windshield wiper intermittent
1 Yellow - white
Yellow - adjusting signal
2 Cruise switch +
BR black 2 Black - Blue Exhaust brake switch B
3 Black - Blue cruise control switch earth 3 Blue - black intermittent switch signal
BW
4 White- blue Cruise main control switch 4 Yellow - red Exhaust brake output signal
5 - - windshield wiper high speed
EL 5 Blue - red
signal
6 - -
6 Black Intermittent windshield wiper
7 - -
windshield wiper low speed
8 - - 7 Blue - yellow
signal
9 - -
8 White - black Earth, windshield wiper switch
10 White Multi-functional volume control
9 Blue - white Washer signal
White -
11 Multifunction voice volume control - 10 - -
black
11 - -
12 Brown Multifunction horn switch port
12 - -
13 - -
14 - -
15 - -
Battery power
16 Blue supply, windshield wiper
combination switch
EL-274
