Page 1703 - Foton Workshop Manual - Auman EST-M
P. 1703

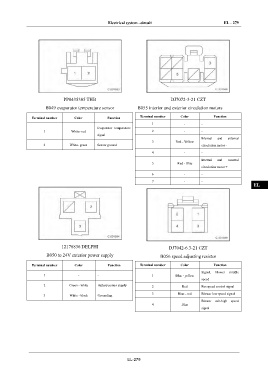

Electrical system –circuit EL - 279
IN
DI
EG
TR
PP0435305 THB DJ7072-3-21 CZT
AX
B049 evaporator temperature sensor B055 interior and exterior circulation motors
Terminal number Color Function
Terminal number Color Function FR
1 - -
Evaporator temperature
1 White- red 2 - -
signal ST
Internal and external
3 Red - Yellow
2 White- green Sensor ground circulation motor -
4 - - BR
Internal and external
5 Red - Blue
circulation motor + BW
6 - -
7 - -
EL
12176836 DELPHI DJ7042-6.3-21 CZT
B050 to 24V exterior power supply B056 speed adjusting resistor
Terminal number Color Function Terminal number Color Function
Signal, blower middle
1 - - 1 Blue - yellow
speed
2 Green - white Battery power supply
2 Red Fan speed control signal
3 Blue - red Blower low speed signal
3 White - black Grounding
Blower sub-high speed
4 Blue
signal
EL-279
