Page 1700 - Foton Workshop Manual - Auman EST-M
P. 1700

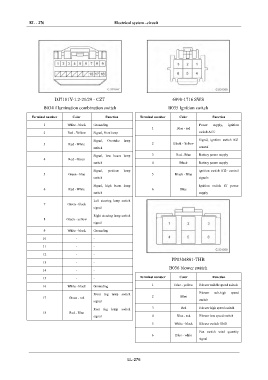

EL - 276 Electrical system –circuit
IN
DI
EG
TR
DJ7181Y-1.2-21/29 - CZT 6098-1716 SWS
AX
B034 illumination combination switch B035 Ignition switch
Terminal number Color Function Terminal number Color Function
FR
1 White - black Grounding Power supply, ignition
1 Blue - red
2 Red - Yellow Signal, front lamp switch ACC
ST
Signal, Overtake lamp Signal, ignition switch IG1
3 Red - White 2 Black - Yellow
switch control
BR
Signal, low beam lamp 3 Red - Blue Battery power supply
4 Red - Green
switch 4 Black Battery power supply
BW
Signal, position lamp ignition switch IG2- control
5 Green - blue 5 Black - Blue
switch signals
EL Signal, high beam lamp Ignition switch ST power
6 Red - White 6 Blue
switch supply
Left steering lamp switch
7 Green - black
signal
Right steering lamp switch
8 Green - yellow
signal
9 White - black Grounding
10 - -
11 - -
12 - -
PP0304801-THB
13 - -
B036 blower switch
14 - -
15 - - Terminal number Color Function
16 White - black Grounding 1 Blue - yellow Blower middle speed switch
Front fog lamp switch Blower sub-high speed
17 Green - red 2 Blue
signal switch
3 Red Blower high speed switch
Rear fog lamp switch
18 Red - Blue
signal 4 Blue - red Blower low speed switch
5 White - black Blower switch GND
Fan switch wind quantity
6 Blue - white
signal
EL-276
