P. 1695

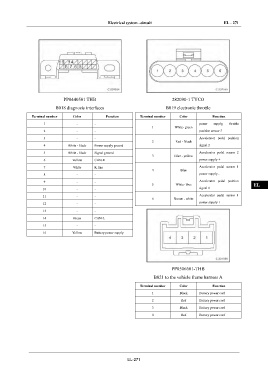

Electrical system –circuit EL - 271
IN
DI
EG
TR
PP0440501 THB 282090-1 TYCO
AX
B018 diagnosis interfaces B019 electronic throttle
Terminal number Color Function Terminal number Color Function
FR
1 - - power supply, throttle
1 White- green
2 - - position sensor 2
ST
3 - - Accelerator pedal position
2 Red - Black
4 White - black Power supply ground signal 2
5 White - black Signal ground Accelerator pedal sensor 2 BR
3 Blue - yellow
6 Yellow CAN-H power supply +
7 White K line Accelerator pedal sensor 1 BW
4 Blue
8 - - power supply -
9 - - Accelerator pedal position
5 White- blue EL
10 - - signal 1
11 - - Accelerator pedal sensor 1
6 Brown - white
12 - - power supply +
13 - -
14 Green CAN-L
15 - -
16 Yellow Battery power supply
PP0506601-THB
B021 to the vehicle frame harness A
Terminal number Color Function
1 Black Battery power cord
2 Red Battery power cord
3 Black Battery power cord
4 Red Battery power cord
EL-271
