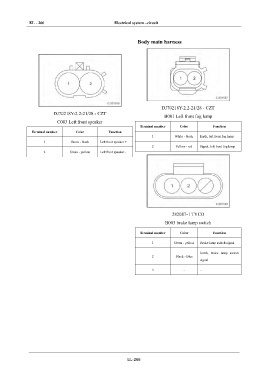

EL - 266 Electrical system –circuit
IN
Body main harness
DI
EG
TR
AX
DJ70218Y-2.2-21/28 - CZT
DJ70218Y-2.2-21/28 - CZT
FR B001 Left front fog lamp
C003 Left front speaker
Terminal number Color Function
Terminal number Color Function
ST 1 White - black Earth, left front fog lamp
1 Green - black Left front speaker +
2 Yellow - red Signal, left front fog lamp
BR 2 Green - yellow Left front speaker -
BW
EL
282087-1 TYCO
B003 brake lamp switch
Terminal number Color Function
1 Green - yellow Brake lamp switch signal
Earth, brake lamp switch
2 Black - Blue
signal
3 - -
EL-266
