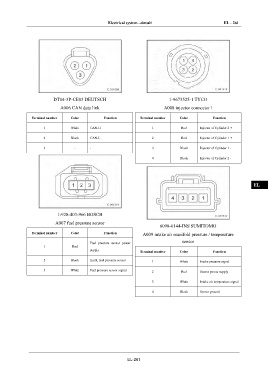

Electrical system –circuit EL - 261
IN
DI
EG
TR
DT04-3P-CE03 DEUTSCH 1-9673525-1 TYCO
AX
A006 CAN data link A008 injector connector1
Terminal number Color Function Terminal number Color Function FR
1 White CAN-H 1 Red Injector of Cylinder 2 +
ST
2 Black CAN-L 2 Red Injector of Cylinder 1 +
3 - - 3 Black Injector of Cylinder 1 -
BR
4 Black Injector of Cylinder 2 -
BW
EL
1-928-403-966 BOSCH
A007 fuel pressure sensor
6098-0144-INS SUMITOMO
Terminal number Color Function A009 intake air manifold pressure / temperature
sensor
Fuel pressure sensor power
1 Red
supply
Terminal number Color Function
2 Black Earth, fuel pressure sensor
1 White Intake pressure signal
3 White Fuel pressure sensor signal
2 Red Sensor power supply
3 White Intake air temperature signal
4 Black Sensor ground
EL-261
