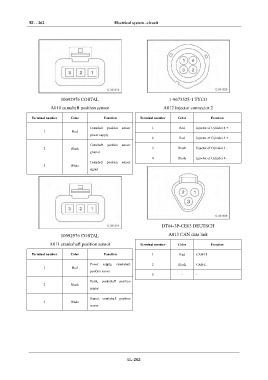

EL - 262 Electrical system –circuit
IN
DI
EG
TR
10092976 COSTAL 1-9673525-1 TYCO
AX
A010 camshaft position sensor A012 injector connector 2
FR Terminal number Color Function Terminal number Color Function
Camshaft position sensor 1 Red Injector of Cylinder 4 +
1 Red
ST power supply
2 Red Injector of Cylinder 3 +
Camshaft position sensor
2 Black 3 Black Injector of Cylinder 3 -
BR ground
4 Black Injector of Cylinder 4 -
Camshaft position sensor
3 White
BW signal
EL
DT04-3P-CE03 DEUTSCH
10092976 COSTAL A013 CAN data link
A011 crankshaft position sensor Terminal number Color Function
Terminal number Color Function 1 Red CAN-H
Power supply, crankshaft 2 Black CAN-L
1 Red
position sensor
3 - -
Earth, crankshaft position
2 Black
sensor
Signal, crankshaft position
3 White
sensor
