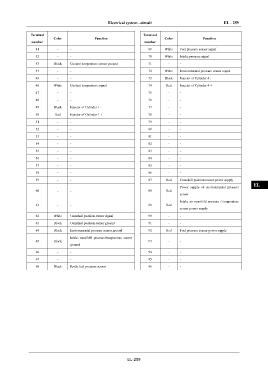

Electrical system –circuit EL - 259

Terminal Terminal IN
Color Function Color Function
number number

41 - - 69 White Fuel pressure sensor signal
DI
42 - - 70 White Intake pressure signal

43 Black Coolant temperature sensor ground 71 - -
EG
44 - - 72 White Environmental pressure sensor signal

45 - - 73 Black Injector of Cylinder 4 -
46 White Coolant temperature signal 74 Red Injector of Cylinder 4 + TR
47 - - 75 - -
48 - - 76 - -
AX
49 Black Injector of Cylinder 1 - 77 - -

50 Red Injector of Cylinder 1 + 78 - -
FR
51 - - 79 - -

52 - - 80 - -
ST
53 - - 81 - -
54 - - 82 - -
55 - - 83 - - BR
56 - - 84 - -

57 - - 85 - -
BW
58 - - 86 - -

59 - - 87 Red Camshaft position sensor power supply
EL
Power supply of environmental pressure
60 - - 88 Red
sensor
Intake air manifold pressure / temperature
61 - - 89 Red
sensor power supply

62 White Camshaft position sensor signal 90 - -

63 Black Camshaft position sensor ground 91 - -

64 Black Environmental pressure sensor ground 92 Red Fuel pressure sensor power supply

Intake manifold pressure/temperature sensor
65 Black 93 - -
ground
66 - - 94 - -
67 - - 95 - -
68 Black Earth, fuel pressure sensor 96 - -

EL-259
