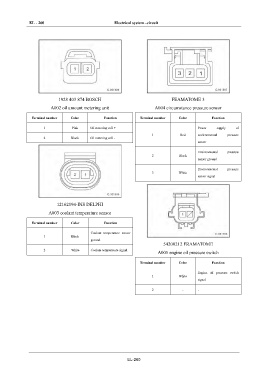

EL - 260 Electrical system –circuit
IN
DI
EG
TR
1928 403 874 BOSCH FEAMATOME 3
AX
A002 oil amount metering unit A004 circumstance pressure sensor
FR Terminal number Color Function Terminal number Color Function
1 Pink Oil metering cell + Power supply of
ST 1 Red environmental pressure
2 Black Oil metering cell -
sensor
BR Environmental pressure
2 Black
sensor ground
BW Environmental pressure
3 White
sensor signal
EL
12162194-INS DELPHI
A003 coolant temperature sensor
Terminal number Color Function
Coolant temperature sensor
1 Black
ground
54200212 FRAMATOME
2 White Coolant temperature signal
A005 engine oil pressure switch
Terminal number Color Function
Engine oil pressure switch
1 White
signal
2 - -
EL-260
