Electrical system –circuit EL - 265

IN

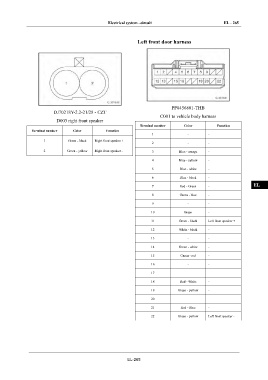

Left front door harness

DI

EG

TR

AX
PP0456801-THB
DJ70218Y-2.2-21/28 - CZT
C001 to vehicle body harness FR
D003 right front speaker
Terminal number Color Function
Terminal number Color Function
1 - - ST
1 Green - black Right front speaker +
2 - -
2 Green - yellow Right front speaker - 3 Blue - orange - BR

4 Blue - yellow -
5 Blue - white - BW

6 Blue - black -
7 Red - Green - EL
8 Green - blue -

9 - -

10 Green -
11 Green - black Left front speaker +

12 White - black -

13 - -

14 Green - white -

15 Green - red -

16 - -

17 - -

18 Red - White -

19 Green - yellow -

20 - -

21 Red - Blue -

22 Green - yellow Left front speaker -

EL-265
