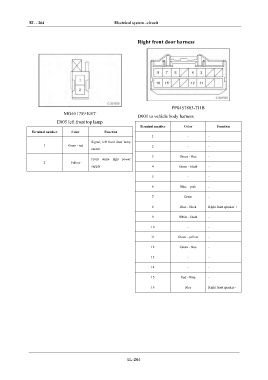

EL - 264 Electrical system –circuit
IN
Right front door harness
DI
EG
TR
AX
PP0457803-THB
MG651759 KET
FR D001 to vehicle body harness
E005 left front top lamp
Terminal number Color Function
Terminal number Color Function
ST 1 - -
Signal, left front door lamp
1 Green - red 2 - -
switch
BR
3 Green - blue -
Front dome light power
2 Yellow
supply 4 Green - black -
BW
5 - -
EL 6 Blue – pink -
7 Green -
8 Blue - black Right front speaker +
9 White - black -
10 - -
11 Green - yellow -
12 Green - blue -
13 - -
14 - -
15 Red - Blue -
16 Blue Right front speaker -
EL-264
