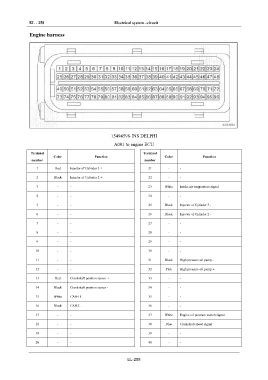

EL - 258 Electrical system –circuit
IN Engine harness
DI
EG
TR
AX
FR
ST 15494598-INS DELPHI
A001 to engine ECU
BR Terminal Terminal
Color Function Color Function
number number
BW 1 Red Injector of Cylinder 3 + 21 - -
2 Black Injector of Cylinder 2 + 22 - -
EL 3 - - 23 White Intake air temperature signal
4 - - 24 - -
5 - - 25 Black Injector of Cylinder 3 -
6 - - 26 Black Injector of Cylinder 2 -
7 - - 27 - -
8 - - 28 - -
9 - - 29 - -
10 - - 30 - -
11 - - 31 Black High pressure oil pump -
12 - - 32 Pink High pressure oil pump +
13 Red Crankshaft position sensor + 33 - -
14 Black Crankshaft position sensor - 34 - -
15 White CAN-H 35 - -
16 Black CAN-L 36 - -
17 - - 37 White Engine oil pressure switch signal
18 - - 38 Blue Crankshaft speed signal
19 - - 39 - -
20 - - 40 - -
EL-258
