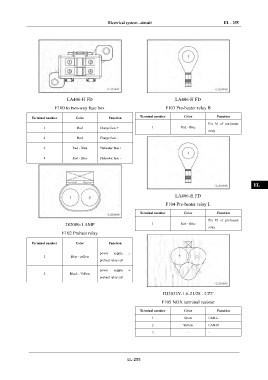

Electrical system –circuit EL - 255
IN
DI
EG
TR
LA406-H FD LA406-H FD
AX
F100 to two-way fuse box F103 Pre-heater relay B
Terminal number Color Function
Terminal number Color Function FR
Pin 30 of pre-heater
1 Red Charge fuse + 1 Red - Blue
relay
ST
2 Red Charge fuse -
3 Red - Blue Preheater fuse +
BR
4 Red - Blue Preheater fuse -
BW
EL
LA406-H FD
F104 Pre-heater relay L
Terminal number Color Function
Pin 87 of pre-heater
282080-1 AMP 1 Red - Blue
relay
F102 Preheat relay
Terminal number Color Function
power supply -,
1 Blue - yellow
preheat relay coil
power supply +
2 Black - Yellow
preheat relay coil
DJ3032Y-1.6-21/28 - CZT
F105 NOX terminal resistor
Terminal number Color Function
1 Green CAN-L
2 Yellow CAN-H
3 - -
EL-255
