P. 1676

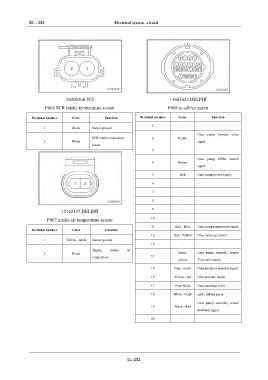

EL - 252 Electrical system –circuit
IN
DI
EG
TR
54200206 FCI 13603422 DELPHI
AX
F065 SCR intake temperature sensor F088 to adblue pump
FR Terminal number Color Function Terminal number Color Function
1 Black Sensor ground 1 - -
ST Urea pump by-pass valve
SCR intake temperature 2 Purple
2 White signal
sensor
3 - -
BR
Urea pump PWM control
4 Brown
signal
BW
5 Red Urea pump power supply
6 - -
EL
7 - -
8 - -
12162197 DELPHI 9 - -
F067 intake air temperature sensor 10 - -
11 Red - Blue Urea pump temperature signal
Terminal number Color Function
12 Red - Yellow Urea metering valve+
1 Yellow - white Sensor ground
13 - -
Signal, intake air
Green - Urea pump assembly sensor
2 Black
temperature 14
yellow 5V power supply
15 Blue - black Urea pump air pressure signal
16 Yellow - red Urea pressure signal
17 Pink-black Urea metering valve
18 White - black earth, adblue pump
Urea pump assembly sensor
19 Black - Red
feedback signal
20 - -
EL-252
