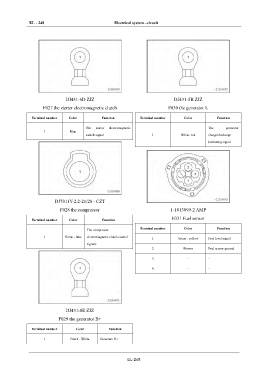

EL - 248 Electrical system –circuit
IN
DI
EG
TR
DJ431-6D ZJZ DJ431-5B ZJZ
AX
F027 the starter electromagnetic clutch F030 the generator L
FR Terminal number Color Function Terminal number Color Function
The starter electromagnetic The generator
1 Blue
ST switch signal 1 White- red charge/discharge
indicating signal
BR
BW
EL
DJ7011Y-2.2-21/28 - CZT
F028 the compressor 1-1813099-2 AMP
Terminal number Color Function F031 Fuel sensor
Terminal number Color Function
The compressor
1 Green - blue electromagnetic clutch control
1 Green - yellow Fuel level signal
signals
2 Brown Fuel sensor ground
3 - -
4 - -
DJ431-8E ZJZ
F029 the generator B+
Terminal number Color Function
1 Black - White Generator B+
EL-248
