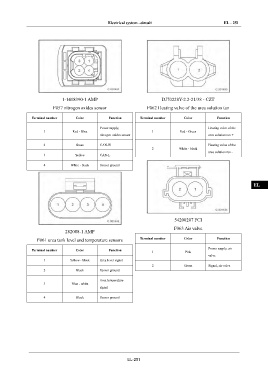

Page 1675 - Foton Workshop Manual - Auman EST-M
P. 1675
Electrical system –circuit EL - 251
IN
DI
EG
TR
1-1418390-1 AMP DJ70228Y-2.2-21/38 - CZT
AX
F057 nitrogen oxides sensor F062 Heating valve of the urea solution tan
Terminal number Color Function Terminal number Color Function FR
Power supply, Heating valve of the
1 Red - Blue 1 Red - Green
nitrogen oxides sensor urea solution tan + ST
2 Green CAN-H Heating valve of the
2 White - black
urea solution tan - BR
3 Yellow CAN-L
4 White - black Sensor ground
BW
EL
54200207 FCI
F063 Air valve
282088-1 AMP
F061 urea tank level and temperature sensors Terminal number Color Function
Power supply, air
Terminal number Color Function
1 Pink
valve
1 Yellow - black Urea level signal
2 Green Signal, air valve
2 Black Sensor ground
Urea temperature
3 Blue - white
signal
4 Black Sensor ground
EL-251
