P. 1674

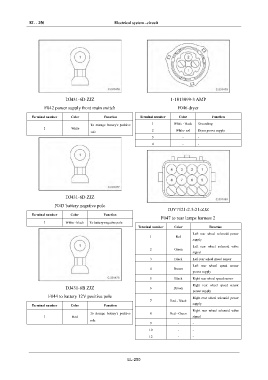

EL - 250 Electrical system –circuit
IN
DI
EG
TR
DJ431-6D ZJZ 1-1813099-3 AMP
AX
F042 power supply front main switch F046 dryer
Terminal number Color Function Terminal number Color Function
FR
1 White - black Grounding
To storage battery's positive
1 White
role 2 White- red Dryer power supply
ST
3 - -
4 - -
BR
BW
EL
DJ431-6D ZJZ
F043 battery negative pole
DJY7121-2.3-21-ZJZ
Terminal number Color Function
F047 to rear lamps harness 2
1 White - black To battery negative pole
Terminal number Color Function
1 Red Left rear wheel solenoid power
supply
Left rear wheel solenoid valve
2 Green
signal
3 Black Left rear wheel speed sensor
Left rear wheel speed sensor
4 Brown
power supply
5 Black Right rear wheel speed sensor
Right rear wheel speed sensor
DJ431-6B ZJZ 6 Brown
power supply
F044 to battery 12V positive pole Right rear wheel solenoid power
7 Red - Black supply
Terminal number Color Function
Right rear wheel solenoid valve
To storage battery's positive 8 Red - Green
1 Red signal
role
9 - -
10 - -
12 - -
EL-250
