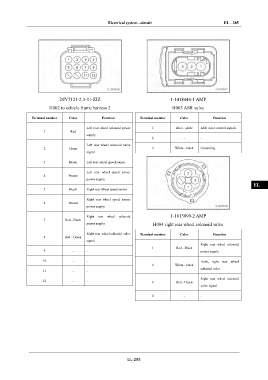

Electrical system –circuit EL - 285
IN
DI
EG
TR
DJY7121-2.3-11-ZJZ 1-1418448-1 AMP
AX
H002 to vehicle frame harness 2 H003 ASR valve
Terminal number Color Function Terminal number Color Function FR
Left rear wheel solenoid power 1 Blue - white ASR valve control signals
1 Red
supply ST
2 - -
Left rear wheel solenoid valve
2 Green 3 White - black Grounding
signal BR
3 Black Left rear wheel speed sensor
BW
Left rear wheel speed sensor
4 Brown
power supply
EL
5 Black Right rear wheel speed sensor
Right rear wheel speed sensor
6 Brown
power supply
Right rear wheel solenoid 1-1813099-2 AMP
7 Red - Black
power supply H004 right rear wheel solenoid valve
Right rear wheel solenoid valve Terminal number Color Function
8 Red - Green
signal
Right rear wheel solenoid
1 Red - Black
9 - - power supply
10 - - Earth, right rear wheel
2 White - black
solenoid valve
11 - -
Right rear wheel solenoid
12 - - 3 Red - Green
valve signal
4 - -
EL-285
