Page 1712 - Foton Workshop Manual - Auman EST-M
P. 1712

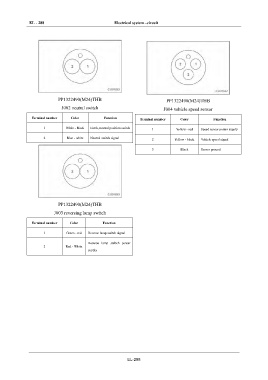

EL - 288 Electrical system –circuit
IN
DI
EG
TR
PP1322490(M24)THB
AX PP1322490(M24)THB
J002 neutral switch
J004 vehicle speed sensor
FR Terminal number Color Function Terminal number Color Function
1 White - black Earth, neutral position switch
1 Yellow - red Speed sensor power supply
ST
2 Blue - white Neutral switch signal
2 Yellow - black Vehicle speed signal
3 Black Sensor ground
BR
BW
EL
PP1322490(M24)THB
J003 reversing lamp switch
Terminal number Color Function
1 Green - red Reverse lamp switch signal
Reverse lamp switch power
2 Red - White
supply
EL-288
