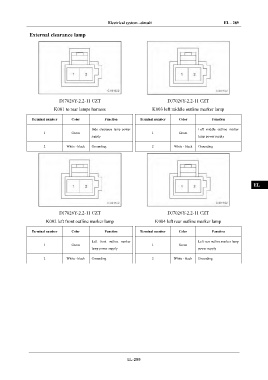

Electrical system –circuit EL - 289
External clearance lamp IN
DI
EG
TR
DJ7026Y-2.2-11 CZT DJ7026Y-2.2-11 CZT AX
K001 to rear lamps harness K003 left middle outline marker lamp
FR
Terminal number Color Function Terminal number Color Function
Side clearance lamp power Left middle outline marker
1 Green 1 Green
supply lamp power supply ST
2 White - black Grounding 2 White - black Grounding
BR
BW
EL
DJ7026Y-2.2-11 CZT DJ7026Y-2.2-11 CZT
K002 left front outline marker lamp K004 left rear outline marker lamp
Terminal number Color Function Terminal number Color Function
Left front outline marker Left rear outline marker lamp
1 Green 1 Green
lamp power supply power supply
2 White - black Grounding 2 White - black Grounding
EL-289
