EL - 294 Electrical system –circuit

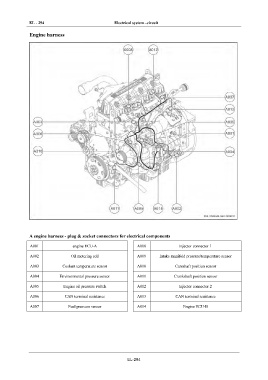

IN Engine harness
DI
EG
TR
AX
FR
ST
BR
BW
EL
A engine harness - plug & socket connectors for electrical components
A001 engine ECU-A A008 Injector connector 1
A002 Oil metering cell A009 Intake manifold pressure/temperature sensor
A003 Coolant temperature sensor A010 Camshaft position sensor
A004 Environmental pressure sensor A011 Crankshaft position sensor
A005 Engine oil pressure switch A012 Injector connector 2
A006 CAN terminal resistance A013 CAN terminal resistance
A007 Fuel pressure sensor A014 Engine ECU-B
EL-294
