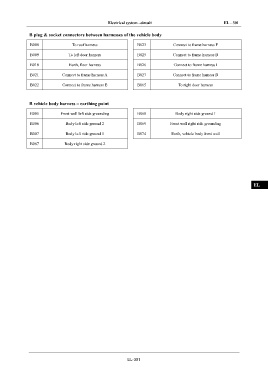

Electrical system –circuit EL - 301
B plug & socket connectors between harnesses of the vehicle body IN
B008 To roof harness B023 Connect to frame harness F
DI
B009 To left door harness B025 Connect to frame harness B
B010 Earth, floor harness B026 Connect to frame harness I
EG
B021 Connect to frame harness A B027 Connect to frame harness D
B022 Connect to frame harness E B065 To right door harness TR
AX
B vehicle body harness – earthing point
B005 Front wall left side grounding B068 Body right side ground 1
FR
B006 Body left side ground 2 B069 Front wall right side grounding
B007 Body left side ground 1 B074 Earth, vehicle body front wall ST
B067 Body right side ground 2
BR
BW
EL
EL-301
