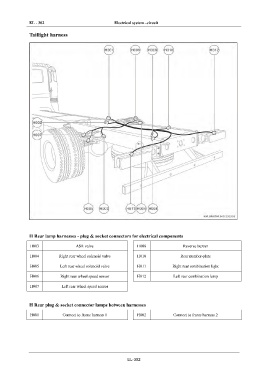

EL - 302 Electrical system –circuit
IN Taillight harness
DI
EG
TR
AX
FR
ST
BR
BW
EL
H Rear lamp harnesses - plug & socket connectors for electrical components
H003 ASR valve H008 Reverse buzzer
H004 Right rear wheel solenoid valve H010 Rear number-plate
H005 Left rear wheel solenoid valve H011 Right rear combination light
H006 Right rear wheel speed sensor H012 Left rear combination lamp
H007 Left rear wheel speed sensor
H Rear plug & socket connector lamps between harnesses
H001 Connect to frame harness 1 H002 Connect to frame harness 2
EL-302
