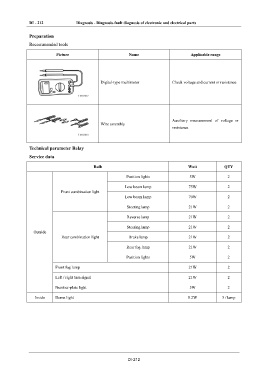

DI - 212 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts
Preparation
Recommended tools
Picture Name Applicable range
Digital-type multimeter Check voltage and current or resistance
Auxiliary measurement of voltage or
Wire assembly
resistance
Technical parameter Relay
Service data
Bulb Watt QTY
Position lights 5W 2
Low beam lamp 75W 2
Front combination light
Low beam lamp 70W 2
Steering lamp 21W 2
Reverse lamp 21W 2
Steering lamp 21W 2
Outside
Rear combination light Brake lamp 21W 2
Rear fog lamp 21W 2
Position lights 5W 2
Front fog lamp 21W 2
Left / right turn signal 21W 2
Number-plate light 5W 2
Inside Dome light 0.2W 3 / lamp
DI-212
