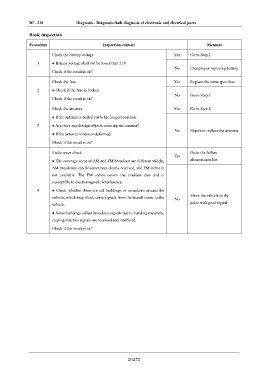

DI - 210 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts

Basic inspection

Procedure Inspection content Measure

Check the battery voltage Yes Go to Step 2
1 ● Battery voltage shall not be lower than 21V
No Charging or replacing battery
Check if the result is ok?

Check the fuse Yes Replace the same spec fuse
2 ● Check if the fuse is broken
No Go to Step 3
Check if the result is ok?

Check the antenna Yes Go to Step 4
● If the antenna is pulled out to the longest position.
3 ● Are there any foreign objects covering the antenna?
No Repair or replace the antenna
● If the antenna is bent or deformed.
Check if the result is ok?

Radio wave check Go to the failure
Yes
● The coverage areas of AM and FM broadcast are different widely, phenomenon list
AM broadcasts can be sometimes clearly received, and FM stereo is
not available. The FM stereo covers the smallest area and is
susceptible to electromagnetic interference.
4 ● Check whether there are tall buildings or mountains around the
Move the vehicle to the
vehicle, which may block some signals from the launch tower to the
No
palce with good signal
vehicle.
● Some buildings reflect broadcast signals due to building materials,
causing that two signals are received and interfered.

Check if the result is ok?

DI-210
