P. 312

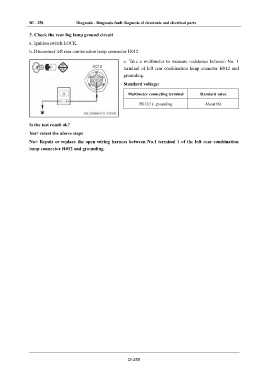

DI - 258 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts
3. Check the rear fog lamp ground circuit
a. Ignition switch:LOCK.
b. Disconnect left rear combination lamp connector H012
c. Take a multimeter to measure resistance between No. 1
terminal of left rear combination lamp connetor H012 and
grounding.
Standard voltage:
Multimeter connecting terminal Standard value
H012(1)- grounding About 0Ω
Is the test result ok?
Yes> retest the above steps
No> Repair or replace the open wiring harness between No.1 terminal 1 of the left rear combination
lamp connector H012 and grounding.
DI-258
