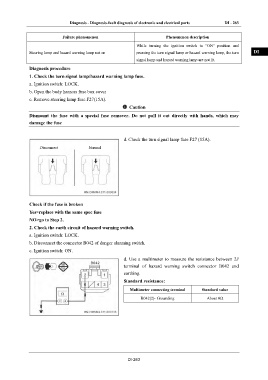

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 263

Failure phenomenon Phenomenon description IN

While turning the ignition switch to "ON" position and
DI
Steering lamp and hazard warning lamp not on pressing the turn signal lamp or hazard warning lamp, the turn
signal lamp and hazard warning lamp are not lit.
Diagnosis procedure EG
1. Check the turn signal lamp/hazard warning lamp fuse.

a. Ignition switch: LOCK. TR
b. Open the body harness fuse box cover

c. Remove steering lamp fuse F27(15A).
AX
Caution

Dismount the fuse with a special fuse remover. Do not pull it out directly with hands, which may FR
damage the fuse

ST
d. Check the turn signal lamp fuse F27 (15A).

Disconnect Normal
BR

BW

EL

Check if the fuse is broken
Yes>replace with the same spec fuse
NO>go to Step 2.
2. Check the earth circuit of hazard warning switch.

a. Ignition switch: LOCK.
b. Disconnect the connector B042 of danger alarming switch.
c. Ignition switch: ON.
d. Use a multimeter to measure the resistance between 2#
terminal of hazard warning switch connector B042 and

earthing.

Standard resistance:

Multimeter connecting terminal Standard value

B042(2)- Grounding About 0Ω

DI-263
