DI - 296 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts

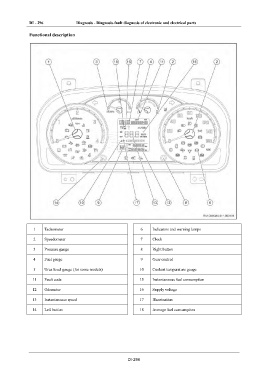

Functional description
1 Tachometer 6 Indicators and warning lamps
2 Speedometer 7 Clock
3 Pressure gauge 8 Right button
4 Fuel gauge 9 Gear control
5 Urea level gauge (for some models) 10 Coolant temperature gauge
11 Fault code 15 Instantaneous fuel consumption
12 Odometer 16 Supply voltage
13 Instantaneous speed 17 Illumination
14 Left button 18 Average fuel consumption
